Wireless DataNet Temperature and Humidity logger

DataNet (Wireless ZigBee system) Part Number Price($US)

Temperature RF logger + 4 external inputs

• External Inputs: 0-1 V, 4-20 mA, Thermocouple (J, K, T), PT-100 (2-wire), Pulse counter, Frequency
• 12 V power excitation
• Includes AC power adapter

DNL910



$383

Temperature/Humidity RF logger + 4 external inputs

• External Inputs: 0-1 V, 4-20 mA, Thermocouple (J, K, T), PT-100 (2-wire), Pulse counter, Frequency
• 12 V power excitation
• Includes AC power adapter

DNL920



$462

Receiver / Repeater *

• Built-in amplifier
• AC power adapter

DNR900



$249

GSM Modem (for SMS alerts)
RS232, EZ-10



12504



$249



* Must order one DNR900 Receiver unit per DataNet system in order to manage the wireless network.

Accessories

PC Suite Part Number Price($US)

• DataNet software CD
• Mini USB communication cable
(for DNR900)
• User guide

DN-PCSUITE



$180


High-End Wireless Data Acquisition System

The DataNet is a 16-bit data logging system with 4 inputs for direct measurement and recording of PT-100, thermocouple (J, K, T), voltage, current, frequency and pulse. Data transmission from units to the central computer utilizes the brand new ZigBee wireless telemetry protocol.

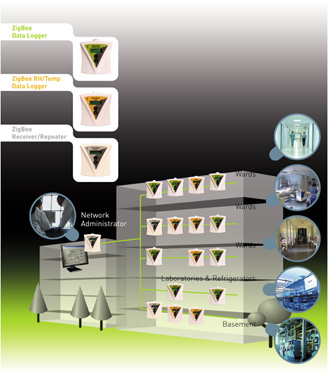

ZigBee wireless protocol uses a 2.4 GHz license free frequency RF band. Each DataNet unit also serves as a transmission repeater to neighboring units, forming a reliable mesh network of up to 65,000 nodes. The ZigBee key features include:

  • Reliable transmission ensuring no data loss
  • Transmission range that can be constantly expanded by adding additional nodes
  • Minimal costs thanks to wire-free infrastructure
  • Portable units facilitating easy deployment in various environments

Key DataNet Benefits:

  • Wireless data logging
  • Internal RH/Temp sensors
  • 4 recording inputs: 4-20 mA, 0-1 V, Pulse counter, PT-100 2-wires, Thermocouple J, K and T
  • Fully reliable monitoring network
  • Cost effective system
  • Multiple alarms including SMS and e-mail to any location
  • Long range monitoring
  • Up to 65,000 network units
  • License-free RF band worldwide
  • Operating keypad and large LCD display

Specifications

Click here to view DataNet Specifications (PDF Format)

Brochure

Click here to view DataNet Brochure (PDF Format)

Need Professional Assistance?
Please feel free to contact us @ Tel: 62419443 or email info@iaqsg.com if you are interested in having your indoor air tested or audited to monitor the Indoor Air Quality in your environment.
