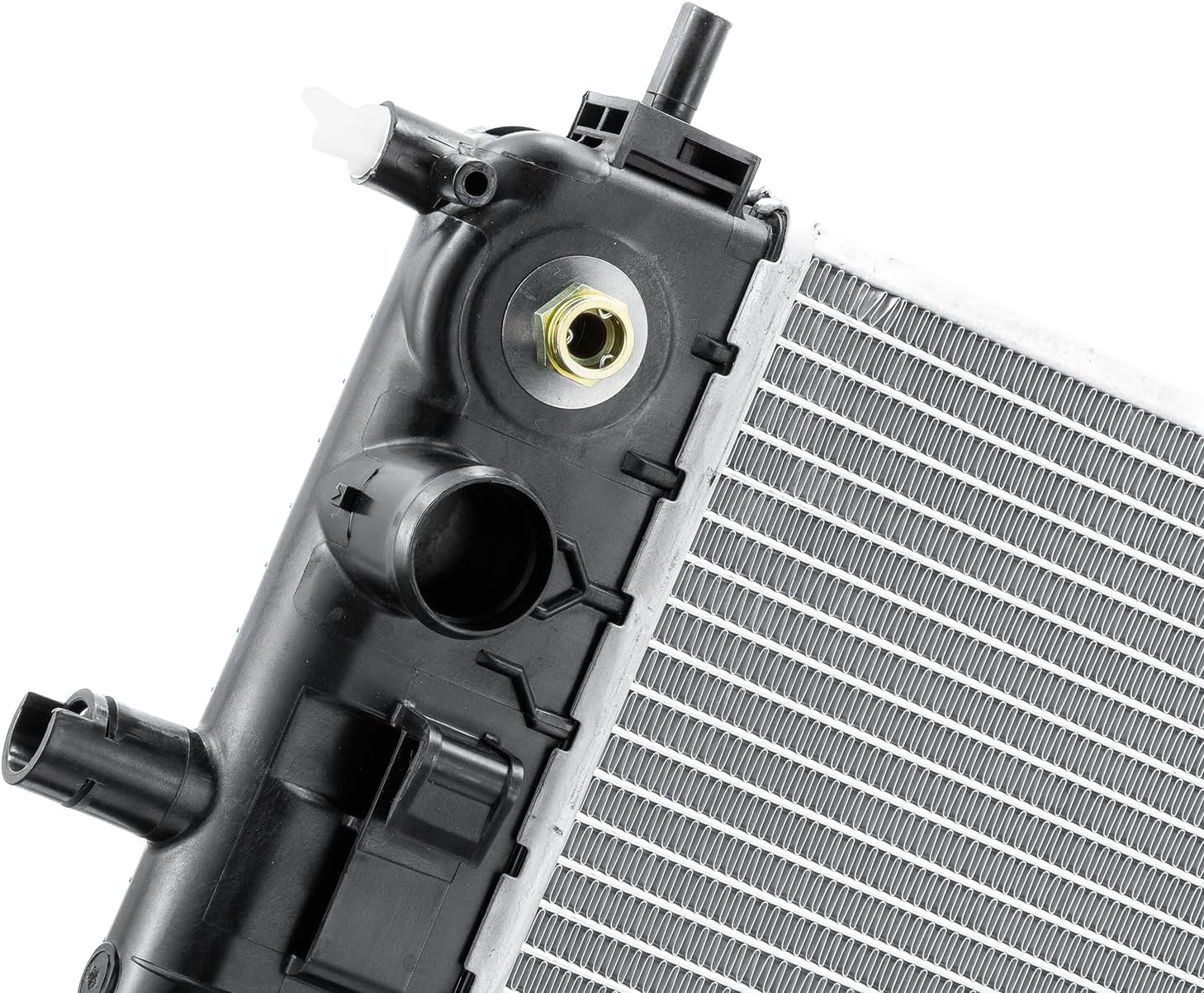

Chevy Impala Radiator, Chevy Malibu Radiator, CU13328 Radiator for 2013-2019 Chevy Impala/Malibu 2.5L 2.0L Engine

Application: 2014-2019 Chevy Impala 2.5L Only (Not for 3.6L) 2013-2015 Chevy Malibu 2.0L & 2.5L Only (Not for 2.4L) 2016-2016 Chevy Malibu Limited 2.5L 2015-2016 Buick Regal Base 2.0L Only (Not for 2.4L) 2014-2016 Buick Regal Premium 2.0L Only (Not for 2.4L) 2016-2016 Buick Regal Sport Touring 2.0L Only (Not for 2.4L) Two Installation Methods of the Fast Connector: 1, Remove the original mount, insert the tube, and tighten the nut at the tip of tube 2, The nut at the end of the tube is not needed, move it away from the tip Next, insert the tube to the mount and push it to the bottom The snap spring on the mount will keep the tube intact Note: Professional Installation Is Highly Recommended 1. The radiator cap that has not passed the test can't release the pressure when it reaches the pressure value 2. The damaged thermostat is unable to carry out a large cycle will result in a continuous increase in the radiator pressure 3. The radiator fan does not turn will result in high temperature in the water tank 4. Drain the air from the cooling system. Refer to the user manual or repair manual 5. Please refer to owner's manual to add coolant 6. Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns 7. Please stop the vehicle immediately when "ENGINE OVERHEAT/High Temperature" shows on the dashboard or steam comes out from under the hood 8. Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries 9. Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure

• Core Size (Inch): 26.7 x 15.7 x 0.63 ; 1 row core
• Inlet/Outlet Diameter (Inch): 1-3/8 & 1-3/8
• Transmission Oil Cooler: Included
• Part #: CU13328, 13328, 20979496, RAD13328, GM3010551, GM3010553, Q13328, TYC13328
• Louvered core fins increase airflow and accelerate heat transfer to keep your engine running cool
