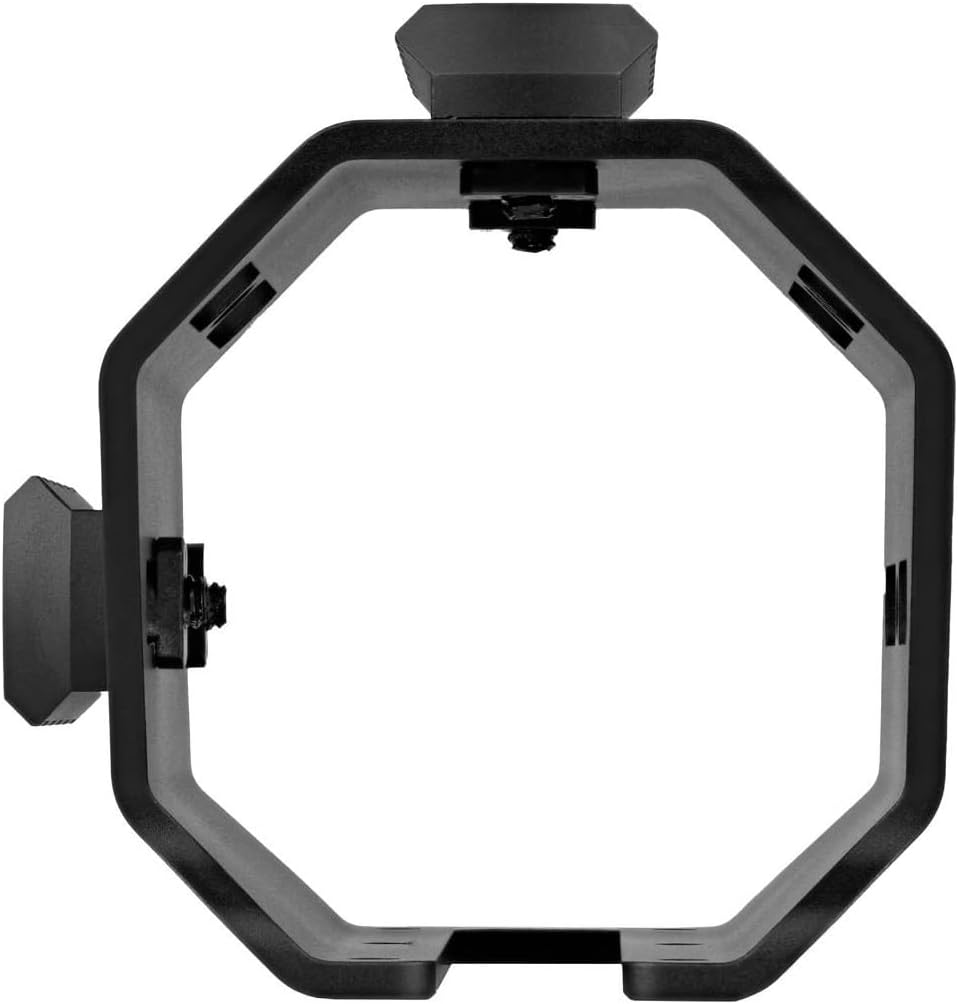

Nightforce Spotting Scope Accessory Cage with 2 Picatinny Rails for Thermals, Red Dot Sights & Laser Rangefinders Attachment - Compatible with Configurable Field Spotting Scope (CFS) 6-36x50mm F1

NIGHTFORCE SPOTTING SCOPE ACCESSORY CAGE FOR CONFIGURABLE FIELD SPOTTING SCOPE (CFS) 6-36X50MM F1: The Spotting Scope Accessory Cage is designed for use with the Configurable Field Spotting Scope (CFS) 6-36x50mm F1. It is purpose-built to securely attach the additional equipment needed to support the end shooter's mission. The cage mounts to the CFS 6-36 spotting scope with six fasteners and provides the user with five М-LOК mounting locations and 1/4-20 threaded holes to attach the most popular accessories for competitive, recreational, and professional use. SPECIFICATIONS: Weight: 5.1 oz / 144 g; Overall Length: 5.1 in / 94 mm. INSTALLATION INSTRUCTIONS: To install the accessory cage, remove the lens cap from the eyepiece and slide the cage over the eyepiece with the horseshoe opening facing forward toward the objective. The accessory cage will slide on and fit between the body tube and the integrated base. On the bottom, align the 6 holes of the cage with the corresponding holes on the integrated base and lightly secure a screw on either side to hold the cage in place. Continue to place screws in the other holes and tighten until they are flush with the base but not torqued to spec. Once all are in place, gradually tighten the screws to 35 in-lb using the tightening sequence shown to the left. If no torque driver is available, tighten 1/8 turn past initial resistance using the provided hex wrench.

• NIGHTFORCE OPTICS ACCESSORY - To be truly useful in the field, the CFS 6-36 spotting scope is designed to be configurable and adaptable to the mission needs of the end user; The Spotting Scope Accessory Cage is purpose-built to securely attach thermals, red dots, laser rangefinders, data cards, and other devices, making the CFS 6-36 ideal for the professional shooter
• HIGH PERFORMANCE - The accessory cage mounts to the CFS 6-36-50 mm spotting scope with six fasteners and provides the user with 5 М-LOК mounting locations and 1/4-20 threaded holes to attach the most popular accessories for competitive, recreational, and professional use; Weight: 5.1 oz / 144 g; Overall Length: 5.1 in / 94 mm
• INSTALLATION INSTRUCTIONS: STEP 1 - To install the accessory cage, remove the lens cap from the eyepiece and slide the cage over the eyepiece with the horseshoe opening facing forward toward the objective; The accessory cage will slide on and fit between the body tube and the integrated base
• INSTALLATION INSTRUCTIONS: STEP 2 - On the bottom, align the 6 holes of the cage with the corresponding holes on the integrated base and lightly secure a screw on either side to hold the cage in place; Continue to place screws in the other holes and tighten until they are flush with the base but not torqued to spec
• INSTALLATION INSTRUCTIONS: STEP 3 - Once all are in place, gradually tighten the screws to 35 in-lb using the tightening sequence shown to the left; If no torque driver is available, tighten 1/8 turn past initial resistance using the provided hex wrench
